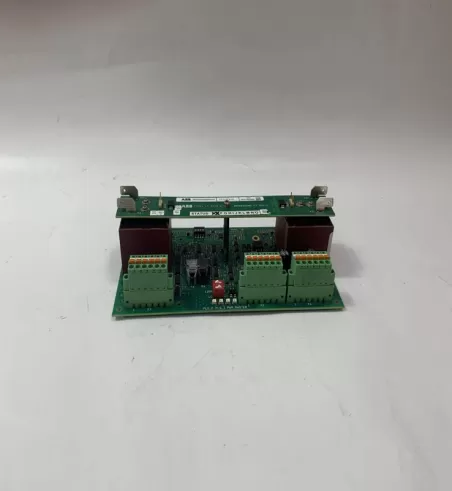

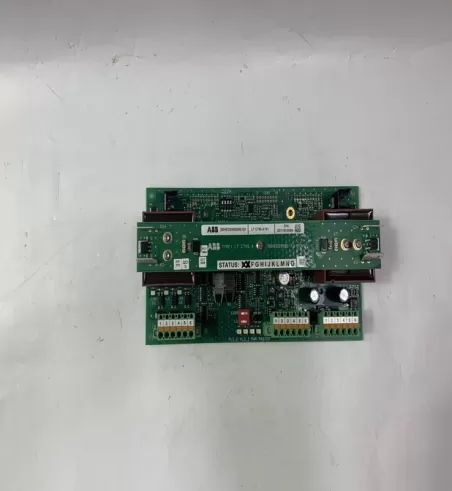

LTC745A101 3BHE039905R0101 ABB Voltage Driver Board

LTC745A101 3BHE039905R0101 ABB Voltage Driver Board

Brand：ABB                                      Model number：LTC745A101 3BHE039905R0101

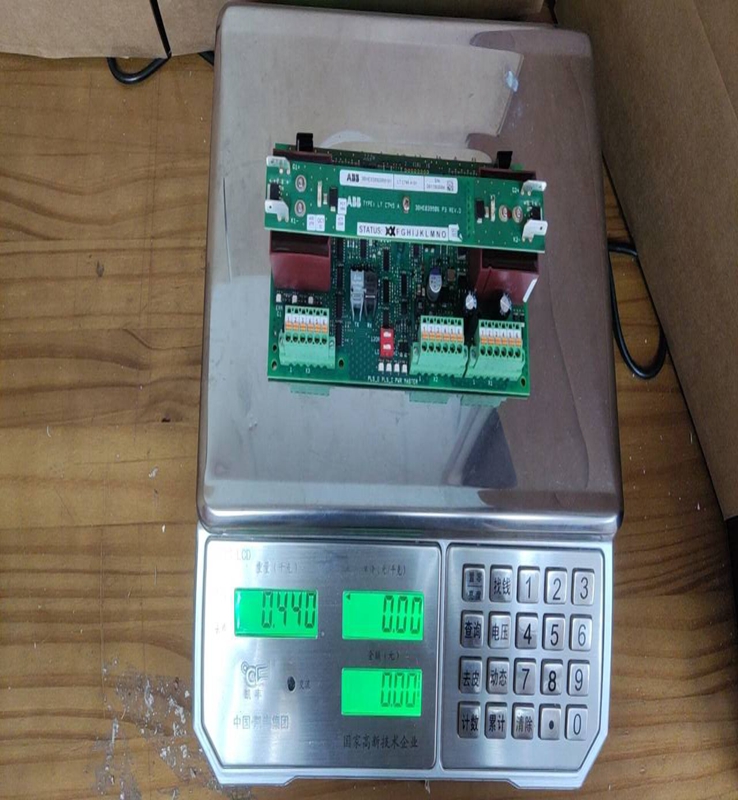

Country of origin: Sweden                Product weight：0.44KG

HS code：8517623990

Product Dimensions：

The LTC®6101/LTC6101HV are versatile, high voltage, high

side current sense amplifiers. Design flexibility is provided

by the excellent device characteristics; 300μV Max offset

and only 375μA (typical at 60V) of current consumption.

The LTC6101 operates on supplies from 4V to 60V and

LTC6101HV operates on supplies from 5V to 100V.

The LTC6101 monitors current via the voltage across an

external sense resistor (shunt resistor). Internal circuitry

converts input voltage to output current, allowing for a

small sense signal on a high common mode voltage to

be translated into a ground referenced signal. Low DC

offset allows the use of a small shunt resistor and large

gain-setting resistors. As a result, power loss in the shunt

is reduced.

The wide operating supply range and high accuracy make

the LTC6101 ideal for a large array of applications from

automotive to industrial and power management. A maximum input sense voltage of 500mV allows a wide range

of currents to be monitored. The fast response makes the

LTC6101 the perfect choice for load current warnings and

shutoff protection control. With very low supply current,

the LTC6101 is suitable for power sensitive applications.

The LTC6101 is available in 5-lead SOT-23 and 8-lead

MSOP packages.

n Supply Range:

 5V to 100V, 105V Absolute Maximum (LTC6101HV)

 4V to 60V, 70V Absolute Maximum (LTC6101)

n Low Offset Voltage: 300μV Max

n Fast Response: 1μs Response Time (0V to 2.5V on

a 5V Output Step)

n Gain Configurable with 2 Resistors

n Low Input Bias Current: 170nA Max

n PSRR: 118dB Min

n Output Current: 1mA Max

n Low Supply Current: 250μA, VS = 12V

n Specified Temperature Range: –40°C to 125°C

n Operating Temperature Range: –55°C to 125°C

n Package Option for High Voltage Spacing

n Low Profile (1mm) SOT-23 (ThinSOT™) Package

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
