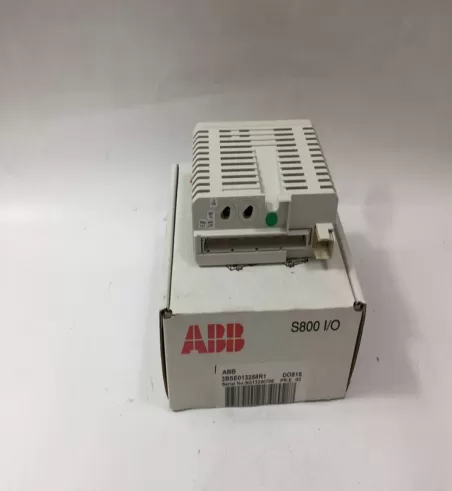

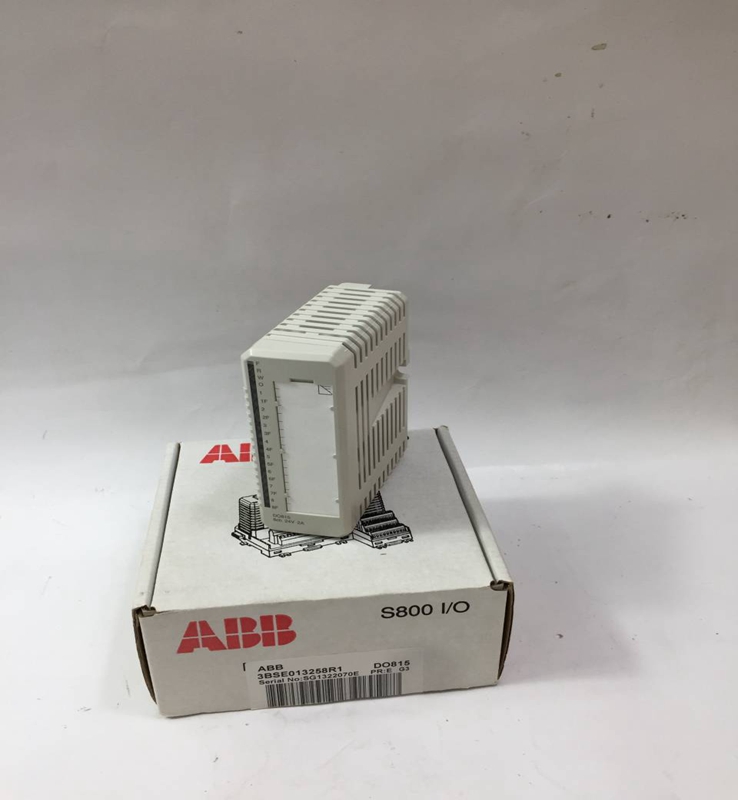

DO815 3BSE013258R1 ABB

Product Dimensions：

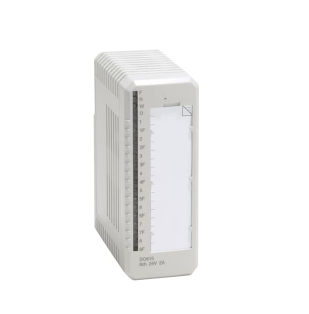

The DO815 is a 8 channel 24 V digital output module for the S800 I/O.

The outputvoltage range is 10 to 30 V and the maximumcontinuous

outputcurrentis 2 A@ 24 V. The outputs are protected against short

circuits, and over load. The outputs are divided into two individually

isolated groups with four outputchannels in each group. Each

outputchannelconsists of a shortcircuit and over load protected

high side driver with open load detection (on active signal), EMC

protection components, inductive load suppression, output status

indication LEDs and optical isolation barrier.

8 channels for 24 V d.c.current sourcing outputs

2 isolated groups of 4 channels with undervoltage detection

OSP sets outputs to predetermined state upon communication error

Output status indicators and a channel wise error flag

Short-circuit protection to ground and positive supply

Over load protection

Open load and short-circuit detection

Two outputfault operation modes: Automaticreset mode and Faultlatching mode

Inductive load driving capability

Filamentlamp load up to 10W
