CP635 1SAP535100R0001 ABB Bailey

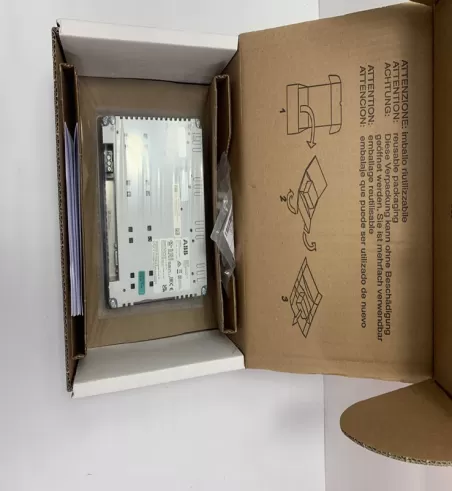

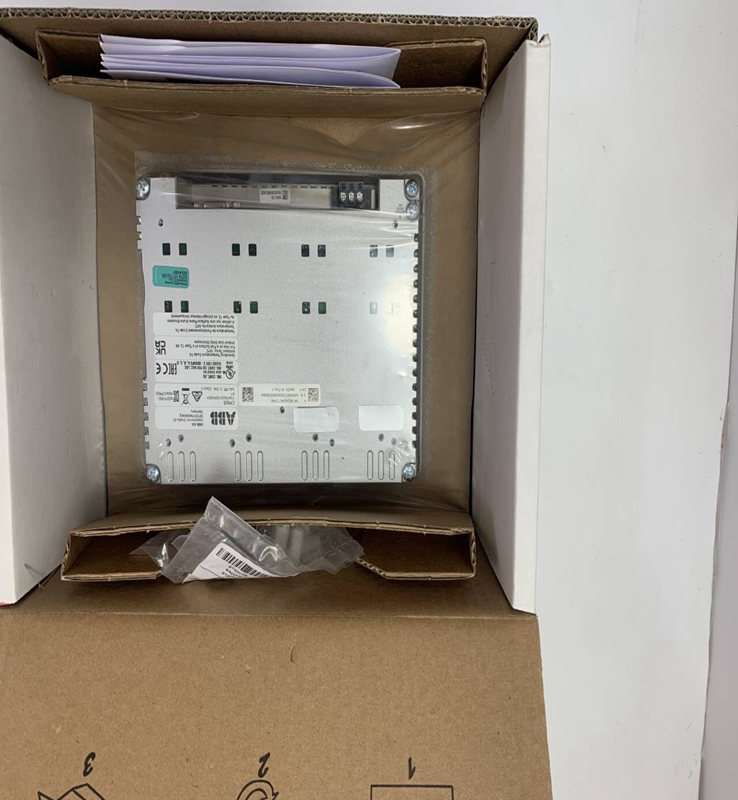

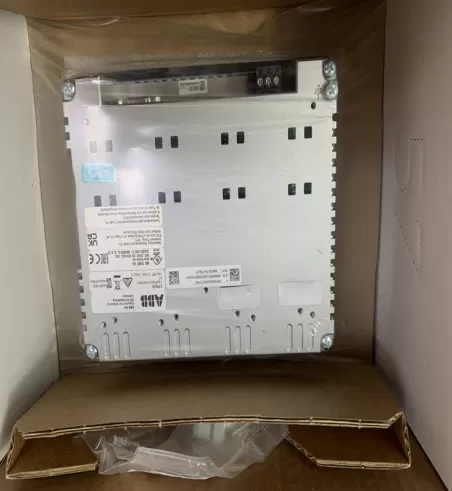

ABB Bailey CP635 1SAP535100R0001 HMI touch screen

Brand：ABB Model number：CP635 1SAP535100R0001

Country of origin: Sweden Product weight：1.28KG

HS code：8517623990

Inquire Now Next Product

Product Details：

Product Dimensions：

The combination of various I/O modules is another special

advantage of the AC 800PEC. AC 800PEC is an open system that provides standard interfaces even for modules

with custom designs and functions. All internal communication between the controller

and I/O modules is entirely via fiber optic links. There is no

electrical connection between the controller and any I/O devices.

AC 800PEC Combi IO UA D149 The Combi IO UA D149 is a

universal remote I/O device for high speed applications and is

part of the AC 800PEC control system. It is mainly used to

detect the actual value in fast closed-loop control and

protection circuits.

The Combi IO consists of the base module UA D141,

which can be equipped with stackable I/O boards such as:

• Up to 2 x Mixed IO boards UA D142, each providing – 16 fast

digital inputs/8 fast digital outputs – 6 fast analog Inputs – 2 fast analog outputs.

• Alternatively: 1 traction module DA D143, providing – 13 analog inputs with various predefined characteristics – 18 digital inputs assigned to specific monitoring tasks. To accommodate various voltage and current levels, the Combi IO can be combined with

low voltage voltage divider boards (up to 1000 Vrms) and CT/VT

daughter boards. AC 800PEC Measurement Interface PECMI UA

D140 Measurement Interface PECMI provides a high-speed current and voltage measurement device as a complement to the Combi IO module.

• Provides active expandable inputs for up to 4 current sensors (eg LEMs)

• Provides inputs for voltage divider boards and CT/VT daughter boards. To accommodate various voltage and current levels, the PECMI can be combined with a voltage divider board: – Voltages

up to 1000 Vrms require a low voltage divider (LVD) – Higher voltages

up to 6000 Vrms require a high voltage divider (HVD)

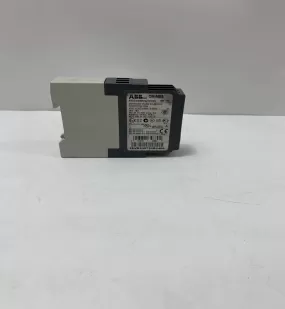

CM-MSS 1SVR430720R0400 ABB Bailey

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
