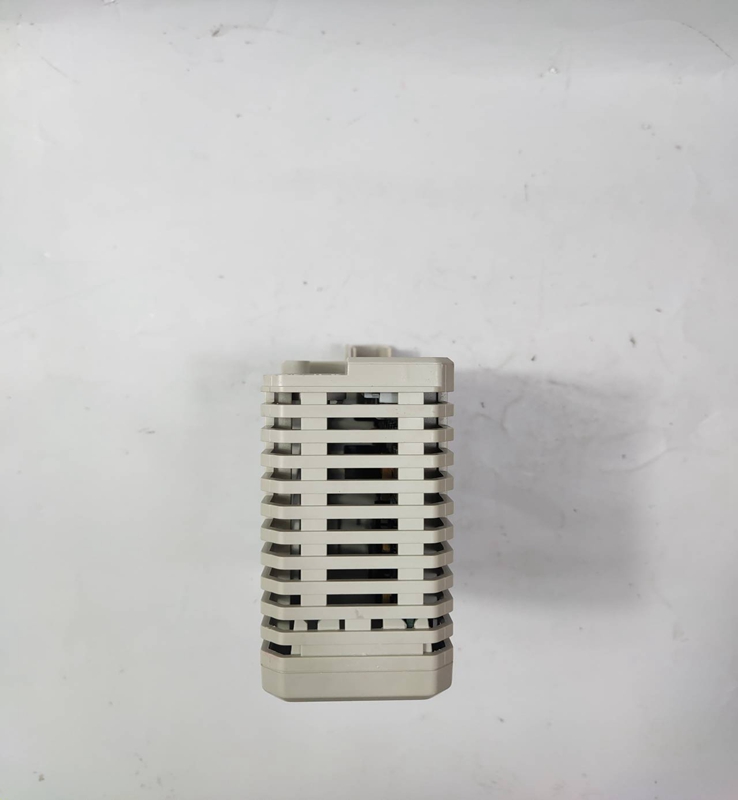

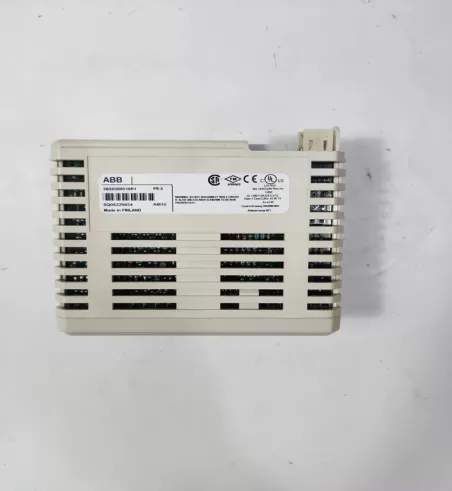

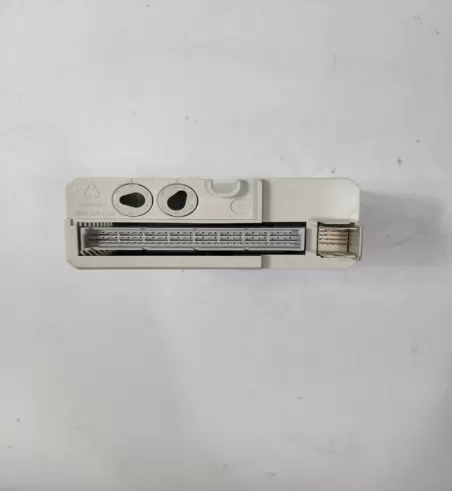

AI810 3BSE008516R1 ABB Analog input module

AI810 3BSE008516R1 ABB Analog input module

Brand：ABB                                      Model number：AI810 3BSE008516R1

Country of origin: Sweden                Product weight：0. 17KG

HS code：8517623990

Product Dimensions：

The AI810 Analog InputModule has 8 channels. Each channelcan be either a voltage orcurrentinput. The currentinputis able to handle a

shortcircuitto the transmitter supply atleast 30 V d.c without

damage. Currentlimiting is performedwith a PTC resistor. The input resistance of the currentinputis 250 ohm, PTC included.

The voltage inputis able to withstand an over or undervoltage of at least 30 V d.c. Inputresistance is 290k ohm. Transmitter supplycan be connected to L1+, L1- and/or L2+, L2-.

8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs

1 group of 8 channels isolated fromground

12 Bitresolution

Input shuntresistors protected to 30 V by PTC resistor

Analog inputs are shortcircuit secured to ZP or +24 V

The inputwithstand HARTcommunication.

CE mark Yes

Electrical safety IEC 61131-2, UL 61010-1, UL 61010-2-201

Hazardous Location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2

Marine certification ABS, BV, DNV-GL, LR

Protection rating IP20 according to IEC 60529

Corrosive atmosphere ISA-S71.04 G3

Climatic operating conditions

0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN

61131-2

Pollution degree Degree 2, IEC 60664-1

Mechanical operating conditions IEC/EN 61131-2

EMC EN 61000-6-4, EN 61000-6-2

Overvoltage categories IEC/EN 60664-1, EN 50178

Equipmentclass Class I according to IEC 61140; (earth protected)

Max ambient temperature 55 °C (131 °F), forvertical mounting in compact MTU 40 °C (104°F)

RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)

WEEE compliance DIRECTIVE/2012/19/EU
