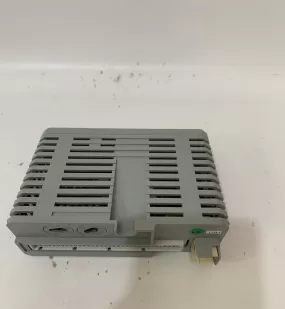

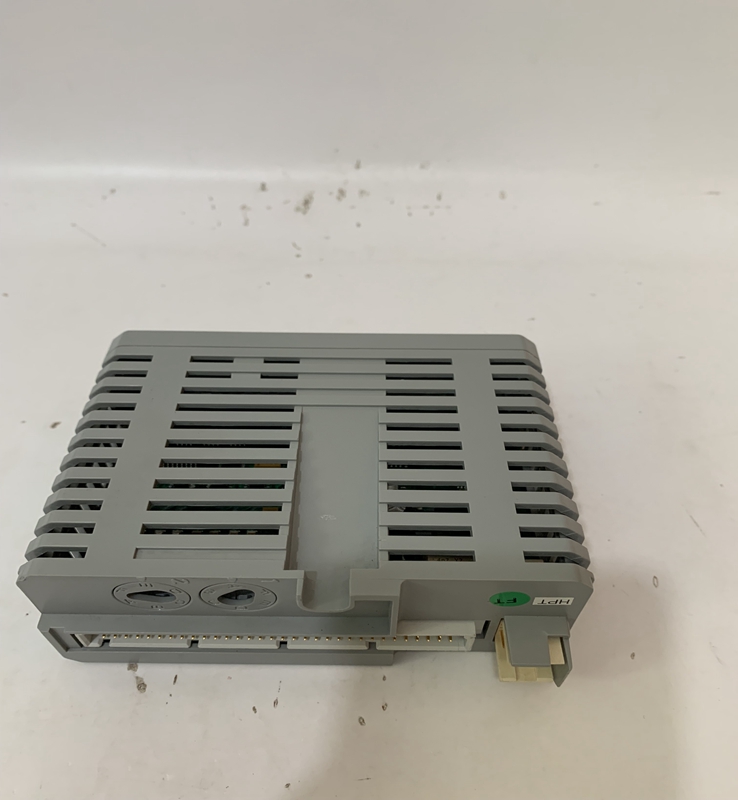

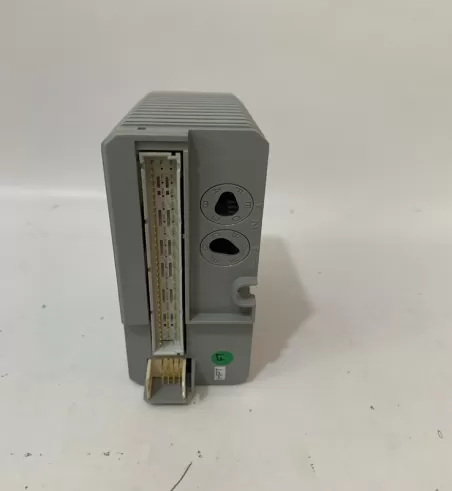

AI810-EA 3BSE008516R2 ABB Analog input module

Product Details:

AI810-EA 3BSE008516R2 ABB Analog input module

BrandABB                                   Model numberAI810-EA

Country of origin: Sweden                Product weight0.440kg

HS code:8517623990

Product Dimensions:

ABB Ability™ System 800xA® hardware selector

The AI810 Analog InputModule has 8 channels. Each channelcan be

either a voltage orcurrentinput. The currentinputis able to handle a

shortcircuitto the transmitter supply atleast 30 V d.c without

damage. Currentlimiting is performedwith a PTC resistor. The input

resistance of the currentinputis 250 ohm, PTC included.

The voltage inputis able to withstand an over or undervoltage of at

least 30 V d.c. Inputresistance is 290k ohm. Transmitter supplycan

be connected to L1+, L1- and/or L2+, L2-.

Features and benefits

8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs

1 group of 8 channels isolated fromground

12 Bitresolution

Input shuntresistors protected to 30 V by PTC resistor

Analog inputs are shortcircuit secured to ZP or +24 V

The inputwithstand HARTcommunication.
