1SBL281001R8410 ABB

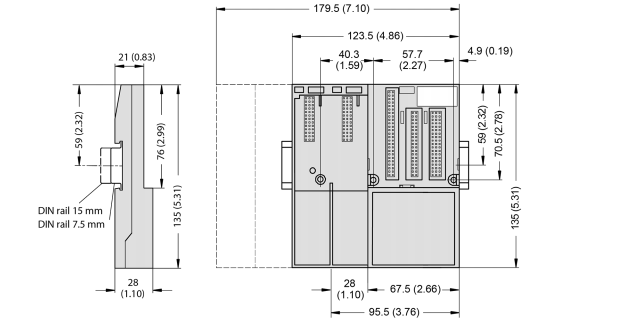

Product Dimensions：

The system data of AC500 and S500 are applicable to the standard version Ä Chapter 4 “System

data AC500” on page 4.

The system data of AC500-XC are applicable to the XC version Ä Chapter 5 “System data AC500-

XC” on page 9.

Only additional details are therefore documented below.

The technical data are also applicable to the XC version.

1

) Including processor modules, communication modules and communication interface modules

2

) The inrush current and the melting integral depends on the internal power supply of the processor

module and the number and type of communication modules and I/O modules connected to the

I/O bus.

– Never exceed the maximum tolerance values for process and supply voltages.

– Never fall below the minimum tolerance values for process and supply voltages.

Observe the system data Ä Chapter 4 “System data AC500” on page 4 and the

technical data of the module used.

Improper voltage level or frequency range which cause damage of AC inputs:

– AC voltage above 264 V

– Frenquency below 47 Hz or above 62.4 Hz

Improper connection leads cause overtemperature on terminals.

PLC modules may be destroyed by using wrong cable type, wire size and cable

temperature classification.
